Fassung DN 25 1SN/2SN/2SC
Pressfassung
für Hydraulikschlauch DN 25 1SN / 2SN / 2SC
Pressmaß 1SN - 39,0mm
Pressmaß 2SN - 40,5mm
Pressmaß 2SC - 39,0mm
zulässige Toleranz +0,0 / -0,4mm

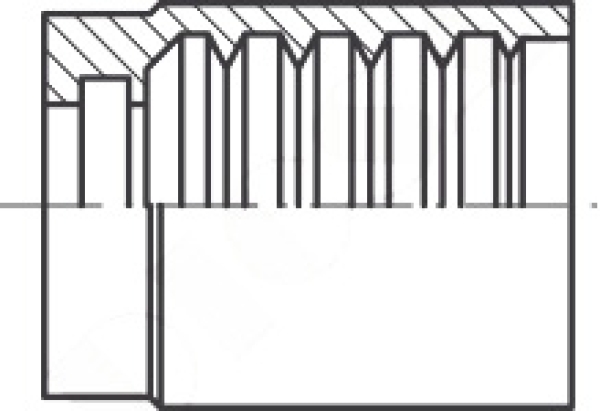

Abmessungen:
L = 51,0 mm
L1 = 42,5 mm
ØA = 46 mm
ØC = 31,0 mm
ØD = 43,3 mm
Ø E = 39,0 mm
L = 51,0 mm
L1 = 42,5 mm
ØA = 46 mm
ØC = 31,0 mm
ØD = 43,3 mm
Ø E = 39,0 mm
Alle Angaben beruhen auf Herstellerdaten.
